Product Description

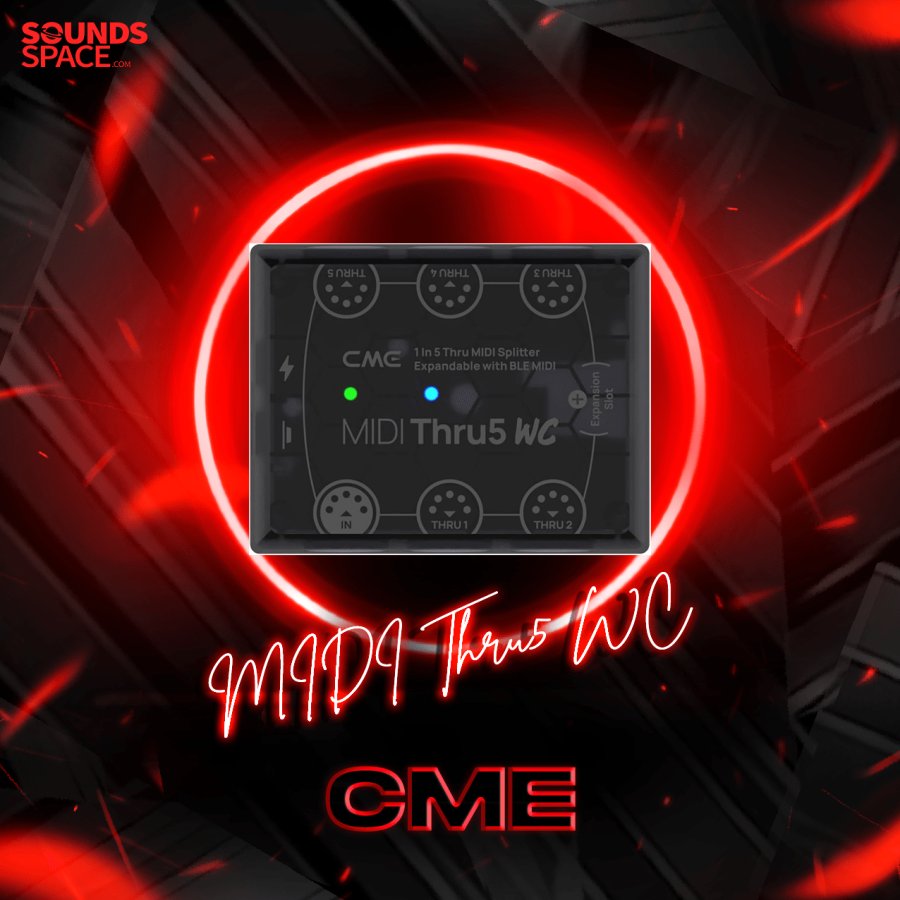

What is MIDI Thru5 WC?
1-in-5-out MIDI Thru/Split with optional Bluetooth MIDI
The compact MIDI thru box with optional wireless MIDI. Work straight out of the box with high-speed wired MIDI.
Expand with ultra-low latency wireless MIDI via the optional WIDI Core.
The latest MIDI technology on demand!
Future-proof MIDI technology
High-precision transmission with groundbreaking accuracy in a rugged housing.
High-speed optocoupler
Seamless synchronization of all MIDI devices with secure error-free MIDI data input.
Power supply via USB-C
Versatile power supply with general USB charger, power bank or USB hub.
Extremely accurate transmission
100% exact transfer of all MIDI messages. Including clock, sysex, MTC and MPE.
Optional Bluetooth MIDI
Ultra low 3ms latency advanced wireless MIDI via WIDI Core expansion module.
People-centric service
Lifetime updates with 24/7 online support and hassle free 1-to-1 warranty replacement.
Discover the MIDI Thru5 BT signal path
Explore new ways and hybrid opportunities
Expand connectivity with Bluetooth MIDI
The most advanced wireless MIDI technology available
Add WIDI Core to your MIDI Thru5 WC and explore the future of MIDI.
Do you want it all in one?
Combine wired and wireless from a single box
Connect up to 10 MIDI devices simultaneously with WIDI Thru6 BT with integrated WIDI Core.
CME - The MIDI Experts
100% community-driven technology based on 30 years of experience
CME is a contributing board member of the International MIDI Association.
With more than 30 years professional experience, our devices are used and praised by top musicians and engineers around the world.
WIDI is 100% validated and approved by the worldwide MIDI community.
With thousands WIDI enthusiasts around the world, the active community exchanges knowledge via the vibrant Facebook Group.
Technical Specification
Specifications are subject to change without notice.
MIDI Thru5 WC | |
MIDI Connectors | 1x 5-pin MIDI Input, 5x 5-pin MIDI Through |
LED Indicators | 2 LED lights (Bluetooth indicator light only illuminates when WIDI Core expansion module is installed) |
Compatible Devices | Devices with standard MIDI sockets |
MIDI messages | All messages in the MIDI standard, including notes, controllers, clock, sysex, timecode, MPE |
Wired Transmission | Close to zero latency and jitter |
Power Supply | USB-C Socket. Powered by standard 5V USB bus |
Size | 83.5 mm (L) x 65 mm (W) x 33.6 mm (H) |
Weight | 96 g/3.39 oz |
Power Consumption | 20 mW |
WIDI Core - Optional Bluetooth MIDI Expansion | |
Bluetooth Technology | Bluetooth 5 (Bluetooth Low Energy MIDI), bi-directional 16 MIDI channels |
Bluetooth Compatible Devices | WIDI Master, WIDI Jack, WIDI Uhost, WIDI Bud Pro, WIDI Core, WIDI BUD, standard Bluetooth MIDI controller, Mac/iPhone/iPad/iPod Touch, Windows 10/11 computer, Android mobile device (all with Bluetooth Low Energy 4.0 or higher) |
Compatible OS (BLE MIDI) | macOS Yosemite or higher, iOS 8 or higher, Windows 10/11 or higher, Android 8 or higher |
Wireless Transmission Latency | As low as 3 ms (Test results of two MIDI Thru5 WCs with WC module based on Bluetooth 5 connection) |
Range | 20 meters/65.6 feet (without obstruction) |
Firmware Upgrade | Wireless upgrade via Bluetooth using the WIDI App for iOS or Android |
View Installation Instructions
$49.00
Digital Product - Delivered via Email.
